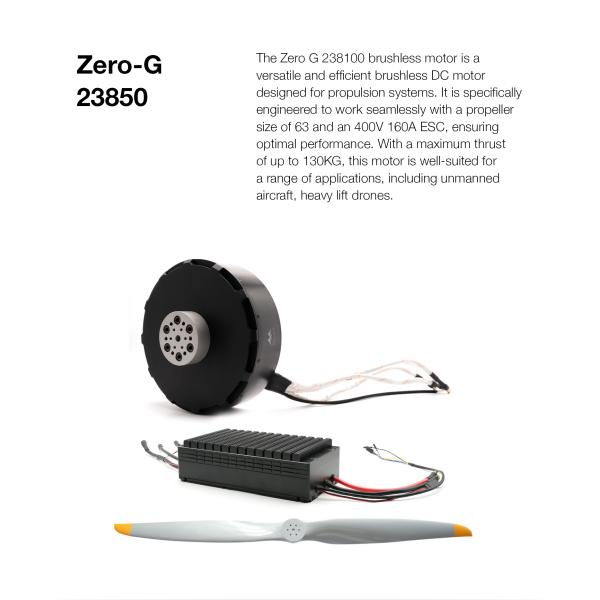

238mm Brushless DC Motor 130KG Thrust for Heavy Lift Drones

Product Categories

Dongguan Furious Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 238mm Brushless DC Motor 130KG Thrust for Heavy Lift Drones
Brand: Furious Motor
Price: 4 USD

Place of Origin : Guangdong, China

Brand Name : Furious Motor

Model Number : 238100

MOQ : 4

Price : $4,832-5,110

Torque : 85N.m

Speed RPM : 2880

Continuous Current : 74A

Efficiency : 89%

Frame Size : 238mm

Rated Voltage : 0-500V

Rated Power : 15kW

Motor Mounting : Panel Mount

Dimension : 238mm x 100mm

ESC Voltage : 400V

ESC Current : 160A

Max Thrust : 130KG

Max Voltage : 397V

Peak Current : 74A

Weight : 7.8kg

Contact Now

Item	Value
Warranty	3 months
Place of Origin	China
	Guangdong
Brand Name	Furious Motor
Model Number	Zero-G 238100
Usage	Heavy lift drone, cargo drone, multi-rotor drone, paramotor, paraglider, VTOL drone, search and rescue drone.
Type	Brushless Motor
Construction	Permanent Magnet
Commutation	Brushless
Protect Feature	Explosion-proof
Efficiency	89%
Dimension	238mm x 100mm
KV	20 / customized
ESC	400V 160A
Max. Torque	85N.m
Max. Thrust	130kg
Max. RPM	2880
Max. Voltage	397V
Peak Current	74A
Propeller	63 inch
Weight	7.8kg
